Overview

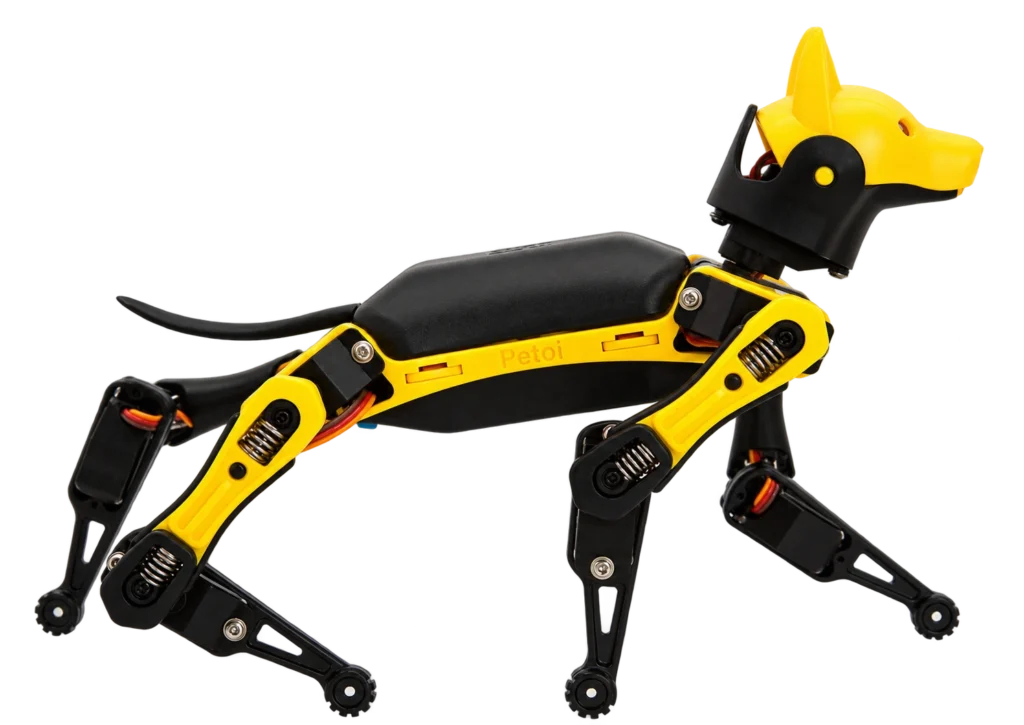

Bittle makes quadruped movement accessible at tabletop scale through OpenCat and Arduino-compatible hardware. Controller and servo packages vary. The current starting construction kit is marked unavailable, while some assembled configurations remain listed; the price is therefore shown with a Limited label.
Capabilities & applications
- Programmable gaits
- Block, Python and C++ learning
Where it fits
- STEM education
- Tabletop robotics
Specifications
Manufacturer-reported. Values apply to the configuration described here.
- Configuration
- Bittle STEM construction kit; lite servos
- Locomotion
- Legged
- Dimensions / pose
- 20 × 11 × 11 cm
- Weight (kg)
- Not published
- Weight conditions
- 265–290 g depending on configuration; no single weight normalized
- Walking payload (kg)
- Not published
- Payload conditions
- Not published
- Speed (m/s)
- Not published
- Speed conditions
- Not published
- Active runtime
- About 1 hour
- Battery / charging
- 7.4 V / 1,000 mAh; charge about 2 h
- Ingress protection
- Not published
- Operating temperature
- Not published
- Terrain capability
- Not published
- Actuators / degrees of freedom
- 9 servo-driven joints
- Perception / sensors
- Six-axis IMU; optional sensor modules
- Connectivity / interfaces
- Serial, I²C and infrared; Bluetooth/Wi-Fi via optional dongles
- Developer access
- OpenCat, Arduino IDE, Python serial API and block-based coding
Limitations & integration
Published capabilities depend on configuration and operating conditions. Confirm the supplied sensors, software permissions, accessories, service coverage and application requirements before purchase.
